Name: JYQD-V6.5E BLDC Motor Driver 36-72VDC 500W with Speed Regulation
Brand: Changzhou Bextreme Shell Motor Technology Co.,Ltd
SKU: JYQD-V6.5E
Price: 9.90 USD
Availability: InStock

Cuota De Producción:	1
Precio:	$8.90-10.90

Información de detalles

Descripción del producto

Información detallada

Lugar de origen

Jiangsu, China

Nombre de la marca

Bextremeshell

Número de modelo

JYQD-V6.5E

Voltaje de entrada:

36-72VDC

Potencia nominal:

350W

Potencia máxima:

500W

Corriente máxima:

15A

Algoritmo de control:

onda cuadrada

Dimensiones:

63 mm x 36.5 mm x 33 mm

Control de velocidad:

PWM/0-5V

Velocidad de respuesta:

Sí

Temperatura de trabajo:

-10°C a 60°C

Frecuencia PWM:

1k-20kHz

Ciclo de trabajo de PWM:

0-100%

Amplitud de PWM:

Distancia del puerto de control:

2.54 mm

Distancia del puerto de alimentación:

3.96m m

Tipo de motor:

motor sin sensor

Resaltar:

500W BLDC motor driver

36-72VDC BLDC driver board

BLDC motor driver with speed regulation

Descripción del producto

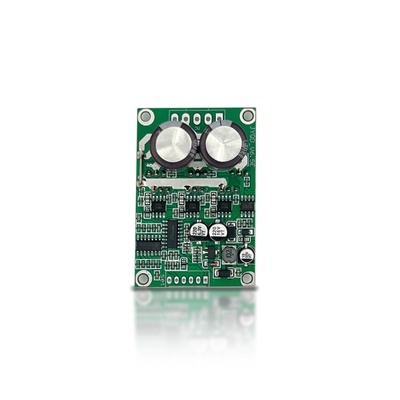

JYQD-V6.5E BLDC Motor Driver

36-72VDC input with max power 500W and torque/speed regulation function.

Product Attributes

Attribute	Value
Accessory Type	Motor driver
For Use With	BLDC motor

Major Parameters

Model No.: JYQD-V6.5E

Power Input: 36-72VDC

Rated power: 350W

Suitability: Sensorless motor

Max power: 500W

Max current: 15A

Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating

Control algorithms: Square wave

Dimensions: 63mm × 36.5mm × 33mm

Speed Control: PWM/0-5V

Speed feedback signal output: Yes

Working temp: -10℃ to 60℃

Applications

The JYQD-V6.5E BLDC motor driver board is designed to control DC brushless motors with precise speed regulation (0-100%). Its square wave control algorithms ensure stability and accuracy for various applications:

Electric skateboard

Electric scooter

Electric wheelchair

Hoverboard

Drones

Electric unicycle

Electric Moped

Electric go kart

RC car

Industrial robot

Logistics conveyor belt

Automation equipment

CNC machines

Self-propelled lawn mowers

Consumer electronics

Home appliances

Industrial equipment

Appearance

Application Guidelines

Confirm that the voltage and power parameters of the motor do not exceed the specified range.
This driver board comes without housing and heatsink. It can drive motors below 100W without heatsink but requires normal ventilation.
The 5V output port is only for external potentiometer or switch for speed adjustment, commutation and enabling operation - do not connect external power equipment.

Wiring Diagram

Control Port

5V: Driver board internal output voltage for external potentiometer/switch
Z/F: Rotating direction control (5V=Forward, 0V/GND=Reverse)
VR: Speed control (0.1V-5V analog or PWM 1K-20KHz, 5V amplitude)
Signal: Speed pulse signal output (5V pulse)
GND: Driver board internal control ground
Torque: Starting torque adjustment (remove fixed-torque resistors first)

Power Port

MA, MB, MC: Motor phases A, B, C
GND: DC negative
VCC: DC positive

Note: Use shielded wires if distance between driver and motor exceeds 50cm. Control port pitch: 2.54mm, Power port pitch: 3.96mm. Ensure proper insulation between MOSFETs and heatsink/installation plate.

Dimensions

Manufacturing Technique

Packing Information

The BLDC motor driver is packed in an individual anti-static bag for protection.

FAQ

What's the lead time?

Sample: 5 days | Mass order: 2-3 weeks

What's the MOQ?

1 set for all series products

What's the warranty?

12 months from delivery date

How is technical support?

We offer 1-on-1 service and technical support
